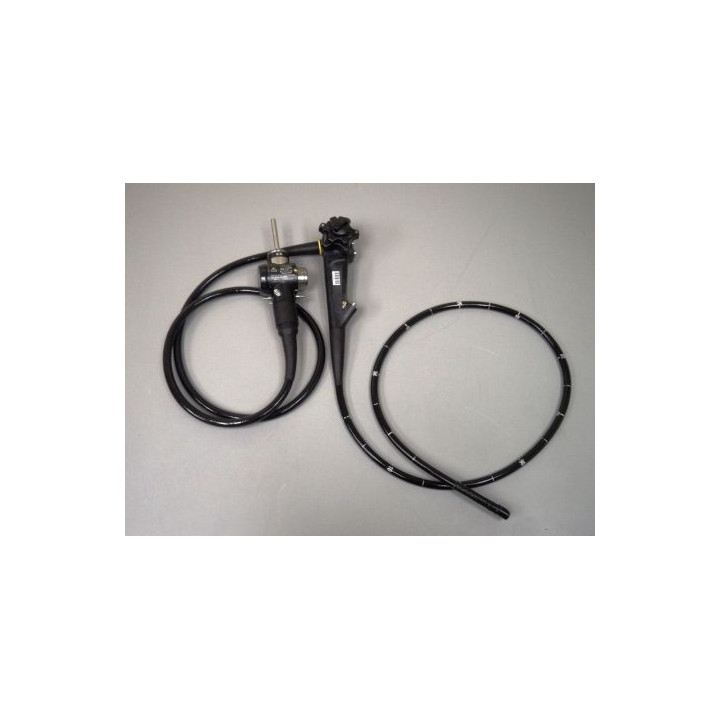

The Olympus EXERA TJF-160F Video Duodenoscope is engineered to provide exceptional imaging, precise control, and superior therapeutic capability for advanced gastrointestinal procedures. Designed specifically for ERCP and pancreatobiliary interventions, this duodenoscope offers reliable performance in hospitals, endoscopy units, and gastroenterology centers.
Its extra-large 4.2 mm instrument channel accommodates a wide variety of Endo-Therapy accessories, including guidewires, sphincterotomes, retrieval devices, dilation balloons, and biliary or pancreatic stents, allowing clinicians to perform complex therapeutic procedures with greater efficiency.
The ergonomically designed control grip improves scope handling and maneuverability, while the integrated Scope ID function records important scope information, including the number of procedures performed, supporting equipment management and maintenance.
The TJF-160F is fully compatible with Olympus CV-180, CV-160, CV-140, and CV-100 video processors, making it an excellent addition to existing Olympus endoscopy systems.
Key Features
- Designed for ERCP and advanced therapeutic endoscopy
- Extra-large 4.2 mm instrument channel
- Supports a wide range of Endo-Therapy accessories and stents
- High-quality Olympus EXERA video imaging
- Ergonomic control grip for improved handling and maneuverability
- Integrated Scope ID function for equipment tracking

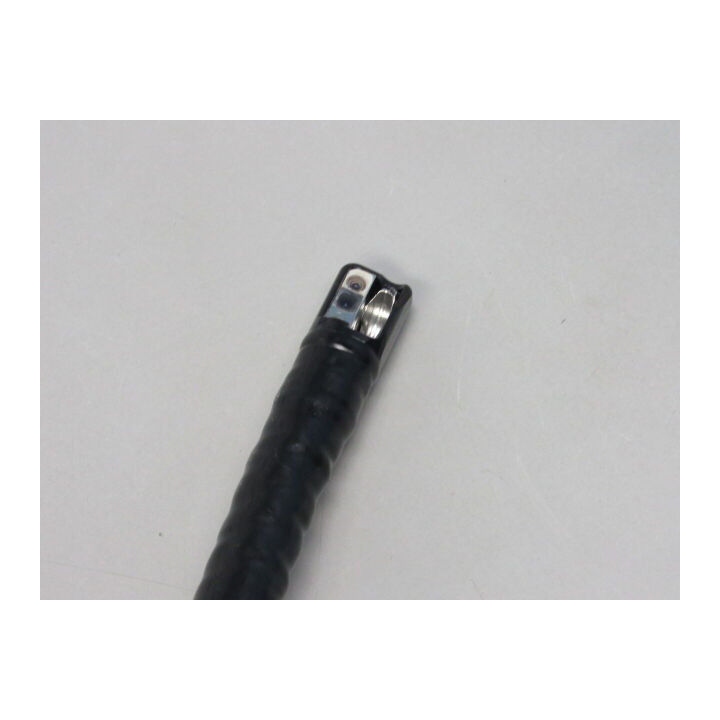

- Side-viewing optical system for biliary and pancreatic procedures
- Compatible with Olympus CV-180, CV-160, CV-140, and CV-100 video processors
- Ideal for hospitals, gastroenterology clinics, and endoscopy centers
Specifications
| Specification |
Details |
| Brand |
Olympus |
| Model |
TJF-160F |
| Series |
EXERA |
| Device Type |
Video Duodenoscope |
| Application |
ERCP & Therapeutic Endoscopy |
| Field of View |
100° |
| Direction of View |
Side Viewing |
| Depth of Field |
5–60 mm |

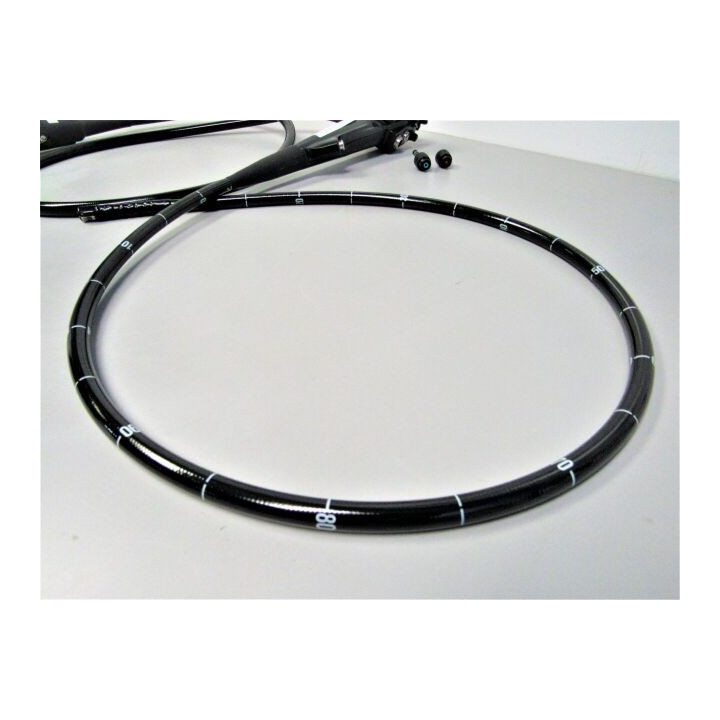

| Insertion Tube Diameter |
11.3 mm |
| Instrument Channel Diameter |
4.2 mm |
| Working Length |
124 cm |
| Total Length |
155 cm |
| Angulation Up |
120° |
| Angulation Down |
90° |
| Angulation Right |
110° |
| Angulation Left |
90° |
| Compatible Video Processors |
CV-180, CV-160, CV-140, CV-100 |
Applications
- Endoscopic Retrograde Cholangiopancreatography (ERCP)
- Biliary Stone Removal
- Biliary and Pancreatic Stent Placement
- Pancreatic Duct Procedures
- Diagnostic and Therapeutic Duodenoscopy
- Advanced Gastrointestinal Endoscopy
- Hospital and Endoscopy Center Procedures
