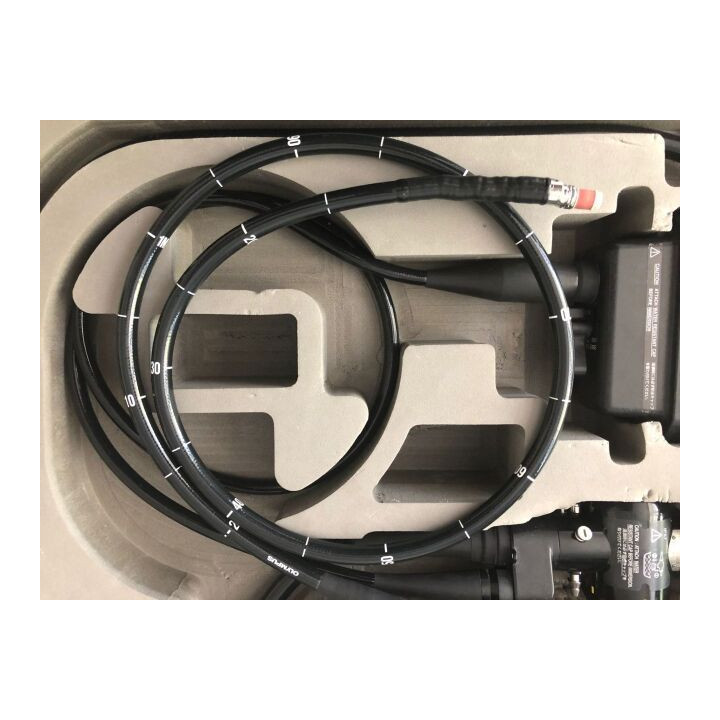

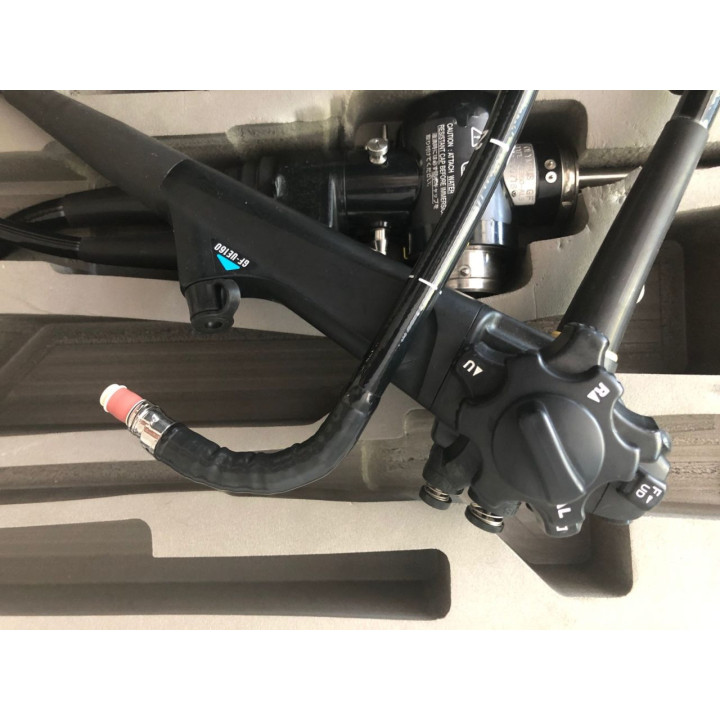

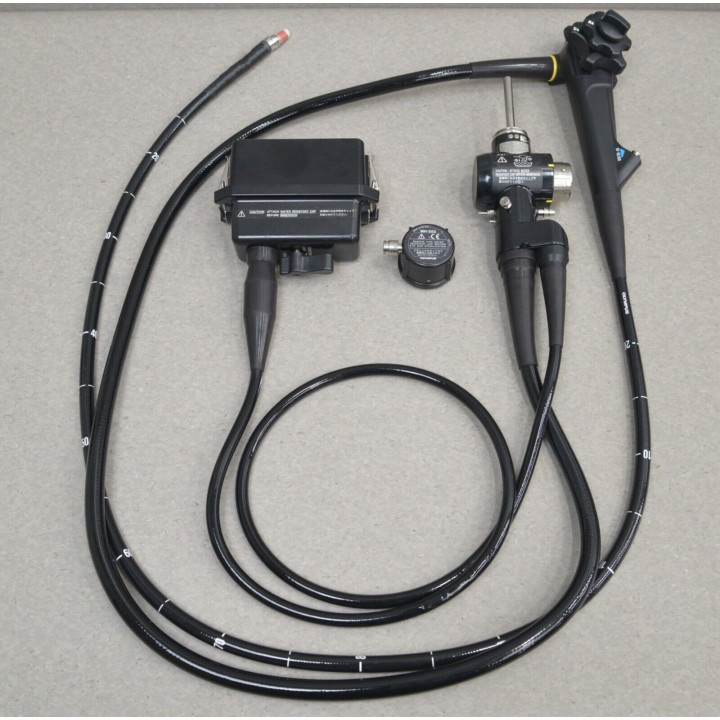

The Olympus GF-UM160 Ultrasound Gastroscope is an advanced Endoscopic Ultrasound (EUS) system that integrates conventional endoscopy with real-time ultrasound imaging, allowing physicians to visualize both the gastrointestinal lumen and surrounding structures during a single examination.
Designed for diagnostic accuracy and clinical efficiency, the GF-UM160 features B-Mode ultrasonic imaging, enabling detailed assessment of the gastrointestinal wall, pancreas, bile ducts, and surrounding organs. Its perpendicular scanning direction provides precise cross-sectional ultrasound images for improved diagnostic confidence.
With a 100° optical field of view, 50° forward oblique viewing angle, and 1250 mm working length, the GF-UM160 offers excellent visualization and maneuverability during upper GI endoscopic ultrasound procedures. The flexible insertion tube and responsive four-way angulation allow smooth navigation through complex anatomy.
The Olympus GF-UM160 is an excellent choice for hospitals, gastroenterology departments, and endoscopy centers performing advanced endoscopic ultrasound (EUS) procedures.
Key Features
- Advanced Endoscopic Ultrasound (EUS) Gastroscope
- Integrated B-Mode ultrasound imaging
- Real-time ultrasonic visualization for accurate diagnosis
- Perpendicular ultrasound scanning direction
- 100° optical field of view for excellent visualization
- 50° forward oblique viewing angle
- Four-way tip angulation for enhanced maneuverability
- 1250 mm working length
- Ideal for gastrointestinal and pancreatic ultrasound examinations
- Designed for hospitals, gastroenterology clinics, and endoscopy centers
Specifications
| Specification |
Details |
| Brand |
Olympus |
| Model |
GF-UM160 |
| Device Type |
Ultrasound Gastroscope (EUS Endoscope) |
| Display Mode |
B-Mode Ultrasonic Imaging |
| Scanning Direction |
Perpendicular to Insertion Direction |
| Field of View |
100° |
| Direction of View |
50° Forward Oblique |
| Depth of Field |
3–100 mm |
| Distal End Diameter |
12.7 mm |
| Insertion Tube Diameter |
10.5 mm |
| Working Length |
1250 mm |
| Instrument Channel Diameter |
2.2 mm |
| Minimum Visible Distance |
3 mm |
| Angulation Up |
130° |
| Angulation Down |
90° |
| Angulation Left |
90° |
| Angulation Right |
90° |
| Total Length |
1560 mm |
Applications
- Endoscopic Ultrasound (EUS)
- Upper Gastrointestinal Examination
- Pancreatic Assessment
- Biliary Tract Evaluation
- Submucosal Lesion Examination
- Gastroenterology Diagnostics
- Hospital and Endoscopy Center Procedures
