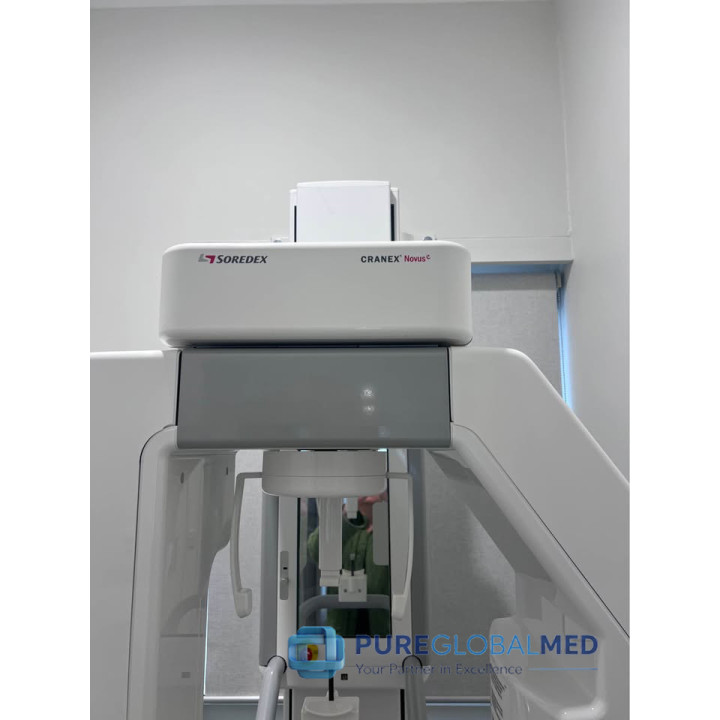

Soredex Cranex Novus e Panoramic X-ray

Soredex Cranex Novus e Panoramic X-ray

Designed for dental offices that demand a first-class digital panoramic unit at an affordable price, the CRANEX Novus e is a fast and easy-to-use digital X-ray system.
• Excellent image quality – Wider range of tube head output and easier program selection with the ClearTouch™ control panel
• 5-point patient stabilization system Guaranteed accurate and stable patient positioning
• 9-second adult panoramic exposure time – Exposure minimizes patient dose and reduces the potential for movement artifacts
• Easy program settings – Offers preferences for wide range of image filtering and grayscale settings
• Computer networking – Multi-connect functionality of CRANEX Novus e enables direct connection to unit from multiple treatment rooms with its simple-to-use ethernet connection to your PC or network

Specifications
X-Ray Generator & Tube
Focal Spot: 0.5 mm
Tube Voltage: 63 – 77 kV
Tube Current: 10 mA
Total Filtration: Min. 2.5 mm Al equivalent

Imaging & Sensor
Sensor Type: CCD
Pixel Pitch: 96 μm
Image Processing: Advanced automatic image processing and advanced spinal compensation

Acquisition Times
Adult Panoramic: 9 seconds
Pediatric Panoramic: 9 seconds (automatically reduced image area)
TMJ (Temporomandibular Joint): 3 - 4 seconds (per side)

Patient Positioning & Support
Stabilization: 5-point patient stabilization system (chin rest, forehead support, and lateral temple supports)
Positioning Lights: 3 laser positioning lights (mid-sagittal, Frankfort horizontal, and focal trough)

Unit Dimensions & Power Requirements
Weight: 80 kg (approx. 176 lbs)
Power Supply: 220 - 240 V, 50/60 Hz
Footprint Requirements: Compact design that integrates easily into smaller operatories

Connectivity & Features
Control Panel: Intuitive ClearTouch display
Connection: Simple Ethernet connection to your local PC or network
Imaging Programs: Standard panoramic, pediatric panoramic, TMJ (open/closed), and optional bitewing program
