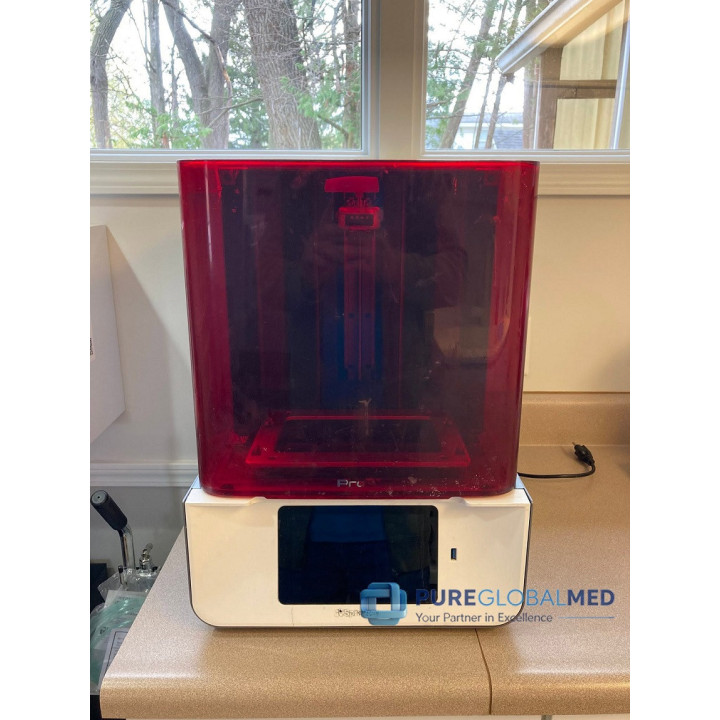

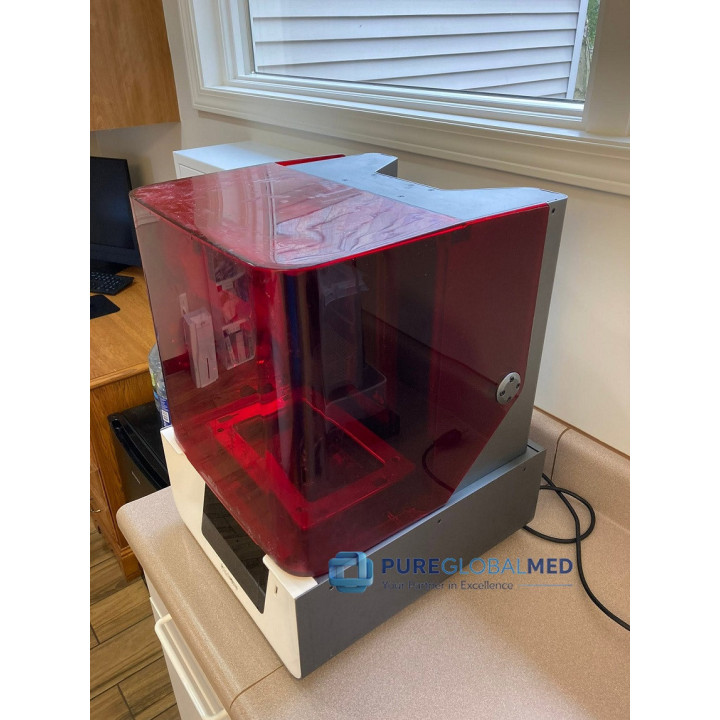

Sprintray Pro 55s Printer

Sprintray Pro 55s Printer

SprintRay Pro 55S is a high-resolution dental 3D printer featuring DLP (Digital Light Processing) technology. It delivers a 55 μ m XY resolution, making it ideal for razor-thin margin restorative applications like definitive crowns, hybrid dentures, and surgical guides.

Benefits
- High-Precision Resolution: Features a 55-micron XY resolution and pixel toning for razor-thin margins needed in definitive crowns, temporaries, and hybrid dentures.
- Heated Build Platform: Keeps the build plate warm to improve layer adhesion, lower failure rates, and reduce stress on the resin tank.
- Smart Sensors and Calibration: Includes onboard sensors on the lid, tank, and build plate to catch placement errors early and assist with self-calibration.
- Access to Specialized Kits: Supports the optional Pro S Arch Kit for fast small-batch production and the Crown Kit for high-viscosity ceramic resins.
- Ecosystem Integration: Magnets on the build plate allow quick, out-of-the-box workflow integration with post-processing units like ProWash S.

Printer Specifications
Printing Technology: Digital Light Processing (DLP) with Direct Peel mechanism
XY Resolution: 55 μ m
Layer Thickness Options: 50, 100, and 170 microns
Build Volume: 10.5 × 5.9 × 20 cm (4.1 × 2.3 × 8 in)
Print Speed: Up to 5.08 cm (2 in) per hour at 100 μ m layer thickness
Light Source: Custom-built 1080p FHD Projector (405 nm LED)

Hardware & Software
Connectivity: Wi-Fi (5GHz), Ethernet, USB
Control Interface: 7" built-in touchscreen
Slicer Software: RayWare Cloud
Resin System: Open/Semi-open ecosystem; optimized for SprintRay Resins
Materials Tracking: RFID lifetime tracking on tanks

Physical Properties
Dimensions (Closed): 38.1 × 43.9 × 53.1 cm (15 × 17.3 × 20.9 in)
Dimensions (Open): 38.1 × 50.8 × 61 cm (15 × 20 × 24 in)
Machine Weight: ~18 kg (~40 lbs)
Power Requirements: 100-240 V AC, 50/60 Hz

Key Features
All-Glass Optics: Ensures uniform light distribution across the entire build platform
Intelligent Consumable Tracking: Uses embedded NFC to monitor resin usage and tank life
Platform Heater: Heats the build environment and resin to maintain optimal viscosity during printing
