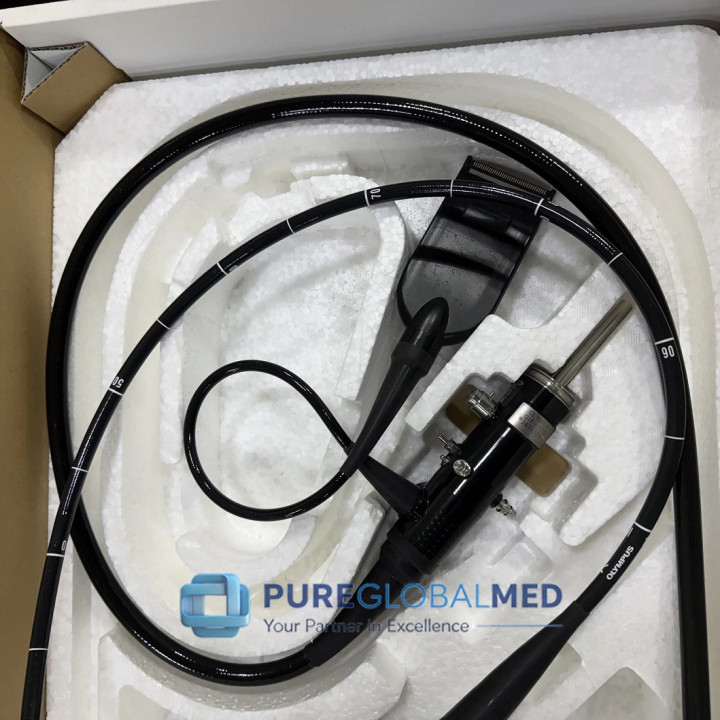

Olympus GIF-H170 Video Gastroscope

Olympus GIF-H170 Video Gastroscope

The Olympus GIF-H170 is a high-definition diagnostic gastrovideoscope designed for daily screening and detailed upper gastrointestinal examinations. It's a high-definition (HDTV) diagnostic and therapeutic video gastroscope featuring Narrow Band Imaging (NBI) and a slim 9.2 mm outer diameter.

Benefits
• HDTV Image Quality: Captures sharp, detailed visuals with accurate colors to support precise clinical evaluations.
• Narrow Band Imaging (NBI): Highlights capillaries and fine structures on the mucosal surface, improving the detection of early or suspicious lesions (such as in the esophagus).
• Close Focus Capability: Allows clinicians to move the scope tip as close as 2 mm to the tissue for a magnified, high-resolution view of pit patterns and surface details.
• Slim 9.2 mm Design: Balances high-end optical performance with a comfortable, slim outer diameter ideal for routine screening.
• Waterproof Connector: The fully submersible connector style reduces setup hassle by removing water-resistant cap requirements and lowering the risk of accidental water-damage during reprocessing and cleaning.

Optical & Imaging Specifications
Image Quality: HDTV
Field of View (FOV): 140° (Forward-viewing)
Depth of Field: 2 to 100 mm
Close Focus: Down to 2 mm from the mucosa (for enlarged close-up views)
Narrow Band Imaging (NBI): Supported for enhanced visualization of mucosal capillaries and surface patterns

Insertion Tube & Distal End
Outer Diameter of Distal End: 9.2 mm
Insertion Tube Outer Diameter: 9.2 mm
Working Length: 1030 mm
Total Length: 1350 mm

Instrument Channel
Biopsy/Instrument Channel Inner Diameter: 2.8 mm
Channel Direction: Forward-viewing

Bending Section (Angulation Range)
Up: 210°
Down: 90°
Right: 100°
Left: 100°

Compatibility: Designed to work with the Olympus Optera Video System Center CV-170
