Olympus EVIS X1 CV-1500 Endoscopy Tower System

Olympus EVIS X1 CV-1500 Endoscopy Tower System

The Olympus EVIS X1 CV-1500 Endoscopy System is an advanced gastrointestinal endoscopy platform supplied with both a GIF-HQ190 gastroscope and CF-HQ190L long colonoscope, providing a comprehensive configuration for upper and lower GI endoscopic procedures.

Includes:
- Olympus Evis X1 CV-1500 Endoscopy with Gastro GIF-HQ190 / Colono CF-HQ190L
- Olympus Evis X1 CV-1500 Processor
- Olympus MAJ-1921 Keyboard
- Olympus OFP-2 Flushing Pump
- Olympus UCR Gas Insufflator with hose
- Olympus MAJ-901 Water Bottle

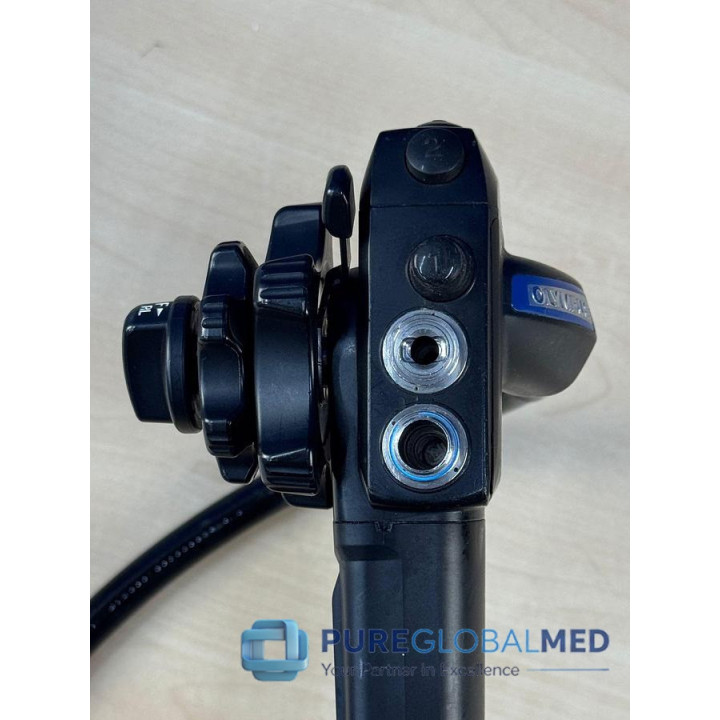

- Olympus GIF-HQ190 Gastroscope with case and Air/Water/Suction valve
- Olympus CF-HQ190L Long Colonoscope with case and Air/Water/Suction valve

Key Specifications & Features
Light Source: 5-LED spectrum technology (including a tailored amber LED for RDI); longer life span and lower energy consumption compared to traditional xenon lamps.
Observation Modes:
- Conventional White Light (WL)
- NBI (Narrow Band Imaging) for vascular and surface mucosal structures
- TXI (Texture & Color Enhancement Imaging) to optimize structure, color tone, and brightness
- RDI (Red Dichromatic Imaging) to improve the visibility of deep blood vessels and bleeding points
- BAI-MAC (Brightness Adjustment Imaging with Maintenance of Contrast) to brighten dark areas while keeping bright areas balanced
Compatibility: Cross-compatible with previous generation systems including EVIS EXERA III and EVIS LUCERA ELITE series endoscopes, as well as Olympus 1100/1200/1500 series scopes.
User Interface: Front-mounted touch-sensitive panel for direct device and image data control; supports pre-freeze and MyCV personalized user modes.
Patient Registration: Ability to register up to 50 patient records (Patient ID, name, gender, age, date of birth).
Recording & Formats: Standard image quality saved as TIFF, low image quality saved as JPEG.
Workflow Enhancements: One-touch connector design with no manual white balance adjustment required for compatible scopes.

Olympus GIF-HQ190 Gastroscope
Optics & Dimensions: Forward-viewing 140° field of view with dual-focus depth of field (Normal: 5–100 mm, Near: 2–6 mm). Outer diameters for the distal end and insertion tube are both 9.9 mm.
Specifications: Working length of 1,030 mm, 2.8 mm instrument channel, and angulation range of 210° up, 90° down, and 100° left/right.
Features: Includes an integrated water jet and waterproof one-touch connector.

Olympus CF-HQ190L Long Colonoscope
Optics & Dimensions: Field of view of 170° (Normal) / 160° (Near) with dual-focus depth of field (5–100 mm / 2–6 mm). Distal end diameter is 13.2 mm and insertion tube outer diameter is 12.8 mm.
Specifications: Working length of 1,680 mm, 3.7 mm instrument channel, and angulation range of 180° up/down and 160° left/right.
Features: Equipped with Responsive Insertion Technology (RIT), ScopeGuide 3D support, water jet, and waterproof one-touch connector.
