3Shape TRIOS 6 Wireless Intraoral Scanner

3Shape TRIOS 6 Wireless Intraoral Scanner

The 3Shape TRIOS 6 Wireless Intraoral Scanner is a next-generation wireless dental scanner featuring multi-source hyperspectral imaging and up to 110% higher scan resolution than previous models.

The 3Shape TRIOS 6 wireless intraoral scanner delivers up to 110% higher scan resolution and introduces advanced hyperspectral imaging to combine geometry, fluorescence, and near-infrared data in a single automated pass.

Benefits
- Hyperspectral Multimodal Scanning: Captures structural geometry and subsurface data simultaneously without extra scanning steps.
- AI-Assisted Diagnostics: Works with TRIOS Dx Plus software to help detect surface and proximal caries, plaque accumulation, tooth wear, and gingival recession.
- Superior Resolution: Delivers sharp color and geometric detail, improving margin line implementation for restorations like inlays.
- Ergonomic & Calibration-Free: Maintains a lightweight, wireless build with tactile button upgrades based on user feedback.

Physical & Hardware Specifications
Weight: 308 grams (10.8 oz)
Scanner Dimensions: 3.8 x 3.9 x 26.6 cm (1.5 x 1.5 x 10.47 inches)
Tip Dimensions: 9.5 x 2.26 x 1.95 cmCapture Rate: 2,400 images per second
Light Source: White light, UV light, and Near-Infrared (NIR) LEDs
Calibration: Calibration-free scanning

Battery & Connectivity
Battery Duration: Up to 43 minutes of non-stop scanning
Charging Time: ~60 minutes to reach 80% power; under 2 hours for a full charge
Battery Dimensions: 7.7 x 2.17 x 2.42 cm
Wireless Range: Up to 15 meters via 5GHz connection

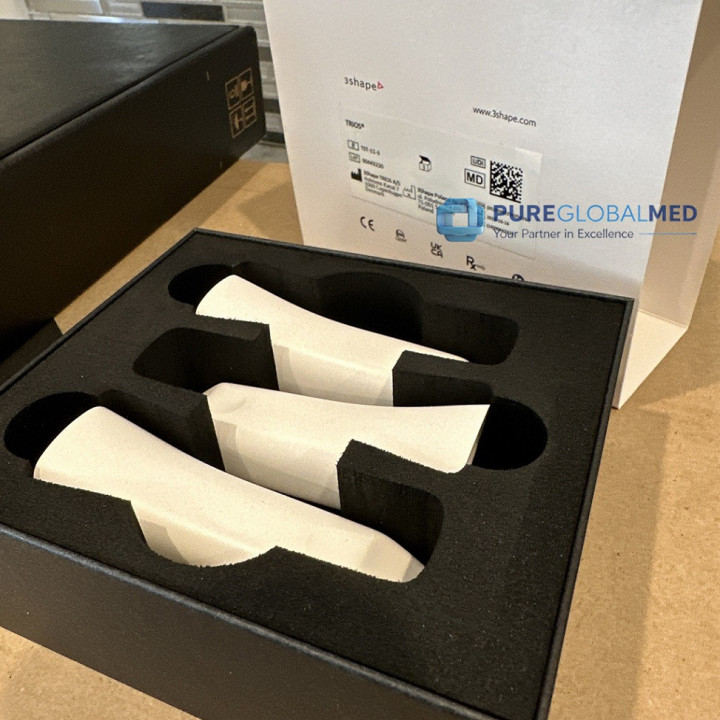

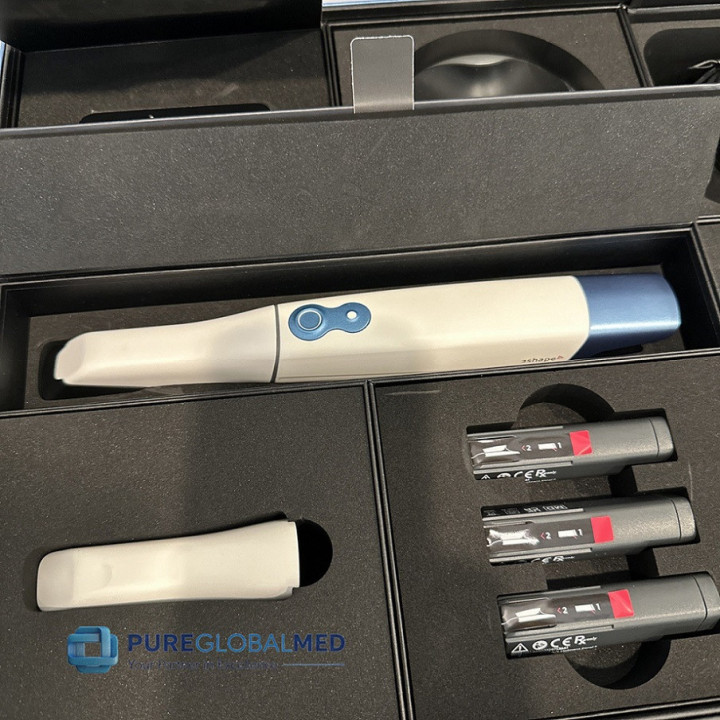

Included Accessories: 3 rechargeable batteries, charger with power cord, autoclavable tips, and protection tips

Software & Technology
Imaging Technology: Multi-source hyperspectral imaging (capturing white, fluorescent, and near-infrared data simultaneously)
AI & Diagnostics: Compatible with 3Shape TRIOS Dx Plus software for AI-assisted detection of caries, tooth wear, plaque, and gingival recession
Minimum Software: Supported on Unite 24.1 or newerOutput Formats: PLY, DCM, and STL
Patient Engagement: Integrated support for the DentalHealth app
