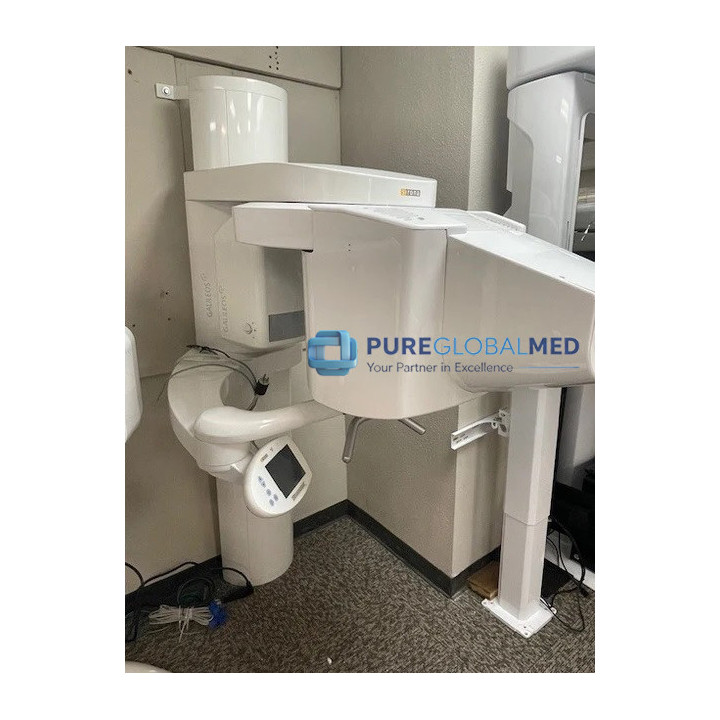

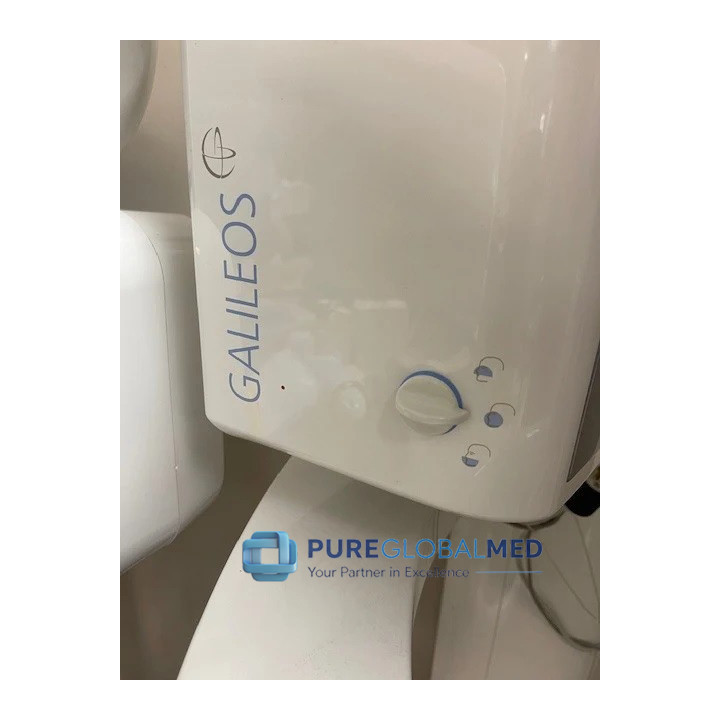

Dentsply Sirona Galileos 3D CBCT System

Dentsply Sirona Galileos 3D CBCT System

Sirona Galileos CBCT (Cone Beam Computed Tomography) is a high-definition 3D dental imaging system, featuring Comfort Plus technology for clear views, offering precise diagnosis and treatment planning for implants, endodontics, and general dentistry with lower radiation than traditional CTs, and capable of generating panoramic (Pano) views from its 3D data for versatile imaging in a single unit, ideal for detailed dental analysis.

Benefits
> Comprehensive Diagnostic Volume: The large 15 cm spherical volume captures upper and lower jaws, the TMJ (temporomandibular joint), and airways in a single scan, reducing the need for multiple overlapping exposures.
Low Radiation Dose Options: Features intelligent dose management to keep patient radiation exposure as low as reasonably achievable (ALARA principle) while retaining diagnostic clarity.
> Metal Artifact Reduction Software (MARS): Automatically diminishes streaking and scattering caused by existing fillings, crowns, or metal implants for cleaner visualization of surrounding bone.
> Optimized Chairside Workflow: Combines smoothly with CAD/CAM systems (like CEREC) to merge optical impressions with 3D radiographic data for surgical guides and same-day restorations.
> Patient Comfort & Positioning: Offers a stable, ergonomic environment with standing or seated positioning options and a fast acquisition cycle that reduces patient anxiety

Imaging & Volume Specifications
Field of View (FOV): 15 cm spherical volume (15 × 15 × 15 cm³), capturing both arches, TMJs, and craniofacial anatomy
Voxel Resolution:
> Standard volume: 0.30 mm (300 µm)
> High-resolution/Close-up: 0.15 mm (150 µm)
Scan/Exposure Time: <14 seconds total rotation time for full volume acquisition
Rotation Angle: 200° circular path around the patient head

X-Ray Generator & Electrical Parameters
Tube Voltage (kV): 85 kV fixed
Tube Current (mA): 5-7 mA (typically 7 mA)
Power Supply Requirements: Hardwired 200V - 240V (± 10%), 20 Amp dedicated circuit

System Features & Workflow

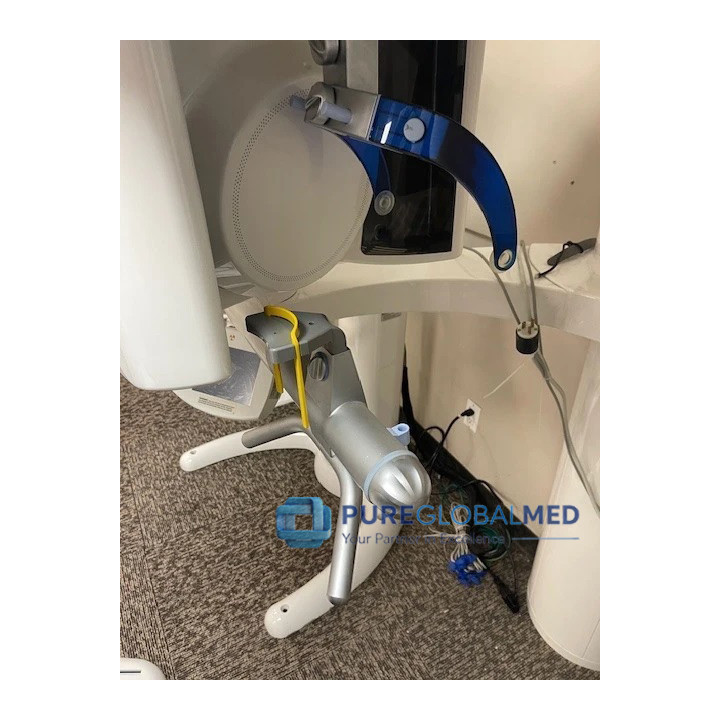

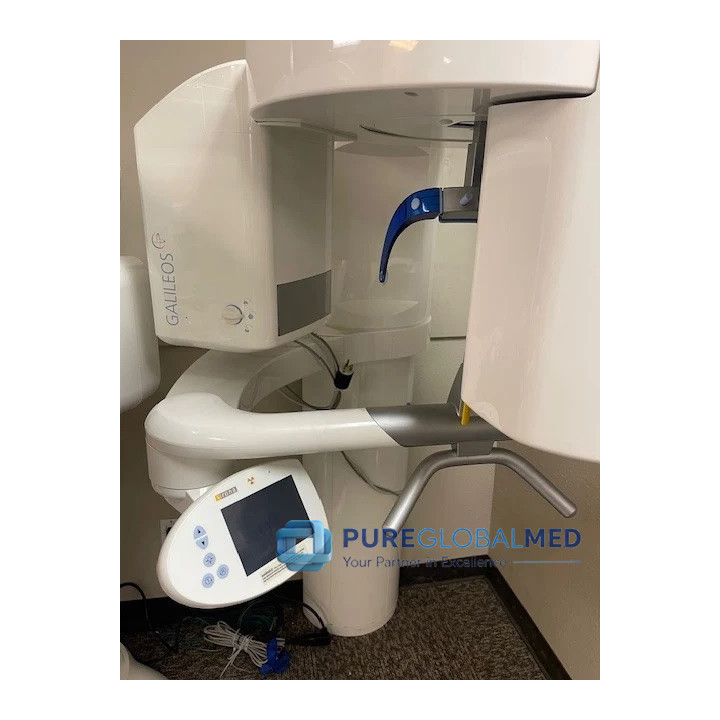

Patient Positioning: Stable head positioner with occlusal bite block, forehead support, and chin rest. Wheelchair accessible

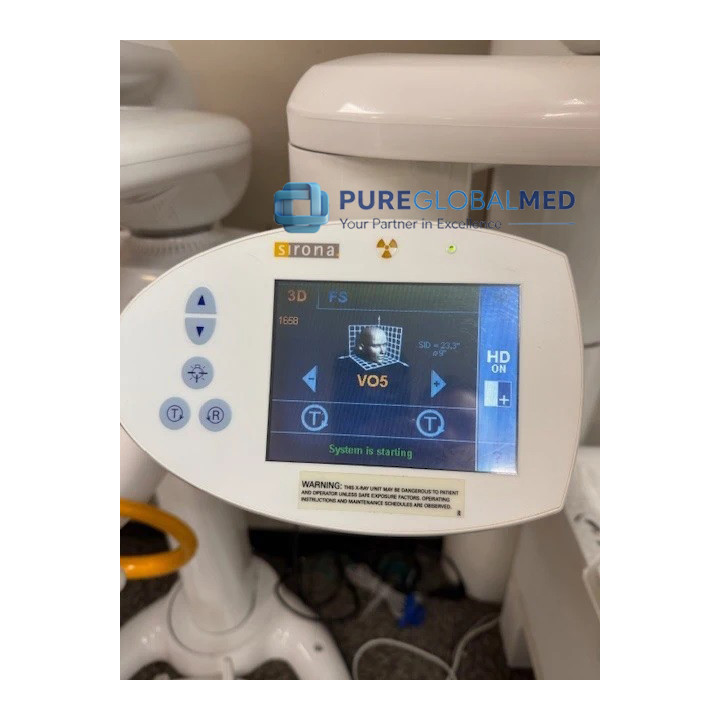

User Interface: Easypad full-color touchscreen control panel
Software Integration: SIDEXIS and GALAXIS software suite for 3D reconstruction, slice navigation, and alignment with third-party or CAD/CAM planning tools
Optional Add-ons: Integrated FaceScanner for soft-tissue facial profile analysis
